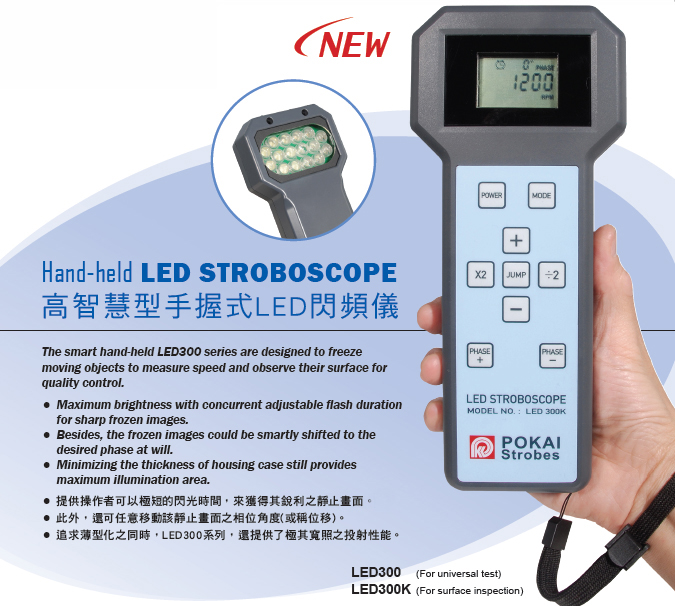

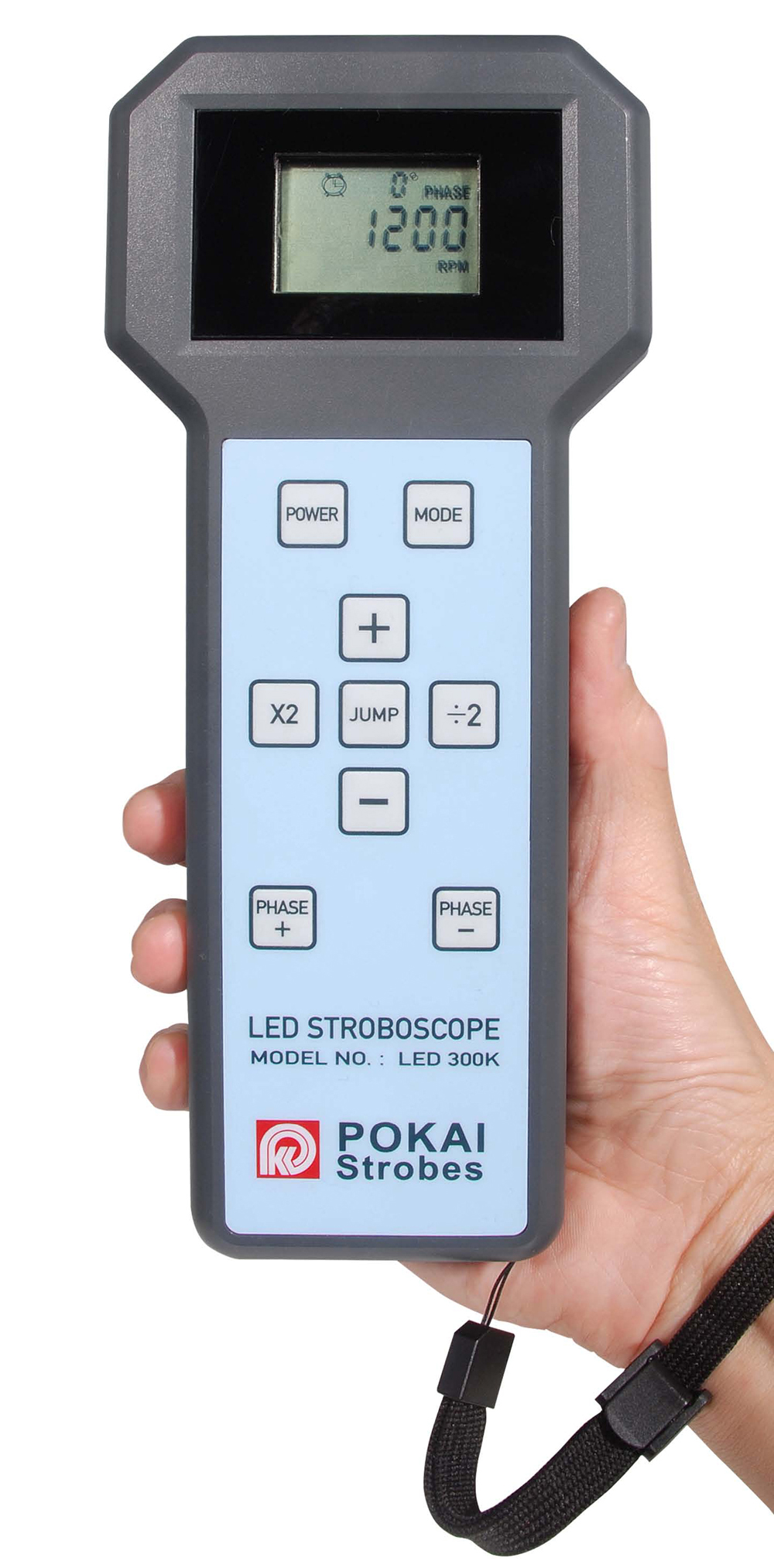

 標題：高智慧手握式LED頻閃儀型號：LED300 描述：頻率300-300000RPM,手握式,照射集中(投射遠),通用型(計量,測速),10小時續航,超長壽命! |
產品詳情：
SPECIFICATIONS ／ 規格表 :
|
Models:
|
|||
|
光線投射方式
Ways of Lighting
|
光線照射集中（投射遠）
通用型（計量、測速）
Focused lighting,
for universal and remote test
|
光線分散投射（照射均勻）
大幅面表面檢查型（靜像畫面銳利）
Diffuse lighting,
for inspection of larger objects
|
|
|
頻率范圍（單位：閃次/分鐘）
Flash Rate Ranges
|
300.0 ~ 300,000FPM
|
||
| 數字顯示屏 Display |
LCD, multiple lines
|
||
| 精確度 Accuracy |
±0.01% of setting @25°C
|
||
| 解析度 Resolution |
±0.1FPM(300.0~1199.9FPM; ±1FPM(1200~120000~300000)
|
||
| 光源組數 Light Source |
16 “CREE” LEDs, LED Array
|
16 “BridgeLux” LEDs, LED Array
|
|
|
光源亮度（6000FPM時）
Light Output @ 6000FPM
|
Approx 3100Lux at 20cm from lens
|
Approx 2900Lux at 20cm from lens
|
|
|
色溫
Color Temperature
|
自然光 Approx 6500K
|
||
|
閃光持續時間（可調）
Flash Duration
|
Adjustable 0.1°~15°, with resolution of ±0.1°
|
||
|
續航時間
Continuous Run Time
|
正常使用情況下，一次充電約10小時續航里程
Approx 10 hours (using NiMH batteries), depending on usage
|
||
| 相位角移動 Phase Shift |
Adjustable 0°~ 359°, with resolution of ±1°
|
||
| 照射面積 Illuminated Area @ 20cm |
Approx. 180mm x 150mm
|
Approx. 225mm x 180mm
|
|
|
LED燈珠使用壽命
LED Life-time
|
Approx 4 years
|
||
|
工作電源供應
Power Supply
|
3節5號（AA）日本GS-YUASA原裝進口鎳氫充電電池（或3節5號普通電池）
3 x NiMH rechargeable AA batteries (or 3 x standard AA)
|
||
| 產品尺寸/重量Dimensions / Weight |
230 x 100(70) x 37cm; Approx 600g
|
||
| 產品材質Housing Material |
Aluminum and ABS heavy duty assembly
|
||
| 配件 Accessories |
3節5號（AA）日本GS-YUASA原裝進口鎳氫充電電池, 日本三洋SANLUX高效能極速充電器（AC100-240V）, 中英文說明書, 質保兩年
3 x NiMH rechargeable AA batteries, 100~240V charger, Manual, 2-year warranty card
|
||
|
Due to improvement, specifications may change without notice.
|
|||
■ Pokai have been one of the leading manufacturers in Asia since the first high performance Stroboscope was made
out successfully in 1978. With over 30 years of exclusive res earch, Pokai offers over 35 models of high performance
stroboscopes for your proper choice. In addition, customized specifications are welcome.
■ 普凱自從1978年成功地推出第一臺高性能閃頻儀以來，如今，經過40多年以上的專精研究，提供了40種以上不同型式的高性能閃頻儀，可讓客戶做最適當之選擇與應用。此外，也歡迎客製化規格之定製。
|
